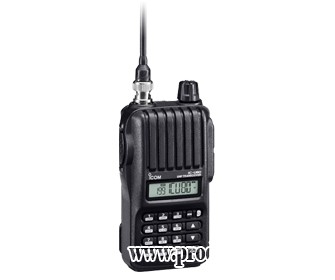

The Icom IC-V80-25 offers rugged, basic 2 meter performance in a rock solid package. You can select 5.5, 2.5 or 0.5 watts of output. Extended receive is 136 to 174 MHz. Enjoy built-in CTCSS/ DTCS Encode and Decode. 207 memory channels are featured including 6 scan edge and 1 call. And each memory can be labeled with up to 5 characters. Multiple scan types are available. The easy-to-use controls are very intuitive. The display backlighting may be set for On, Off or Off after 15 seconds of inactivity. There are also DTMF memory channels. Other enhancements include: wide/ narrow selectivity, removable jack cover, 750 mW of audio, backlit alpha display, weather channel alert ( USA version) , keypad, repeater lock-out, auto-repeater function, time-out timer and auto power off.
The Icom IC-V80-25 comes with: BC-192 slow NiMH wall charger, BP-264 NiMH Battery Pack ( 7.2 VDC 1400 mAh) , BNC flexible antenna and Owner' s Manual.
Features
* Wide / Narrow channel spacing
* 207 Memories
* Scanning
* Power Save
* Three RF Levels 5.5/ 2.5/ 0.5W
* Encode/ Decode Built In
* Time Out Timer
* 16 DTMF Memories
* Ergonomic Controls
IC-V80 Specifications
GENERAL
Frequency range
:
Version IC-V80
USA Tx 144-148 MHz
Rx 136-174 MHz
* Guaranteed range 144-148MHz
Europe 144-146 MHz
Mode : F3E, F2D, [ M]
Number of memory ch. : 207 ( 6 scan edges, 1 call)
Antenna connector : BNC ( 50 ohm)
Power supply : 7.2 VDC
Frequency stability : 2.5 ppm -12 C to + 60 C
Current drain ( at 7.2 V DC)
:
IC-V80
Tx High ( 5.5 Watts) 1.4A
Rx Max. Audio 310mA
Standby 65mA
Power save 20mA
Usable temp. range : -12 C to + 60 C; -4 F to + 140 F
Dimensions
( projections not included) : 58( W) 112( H) 30( D) mm
21D8( W) 515D32( H) 17D16( D) in.
Weight : 360g; 12.7oz ( with BP-264)
TRANSMITTER
Output power ( at 7.2 V DC)
:
IC-V80
High 5.5W
Mid 2.5W
Low 0.5W
Spurious emissions : Less than -60 dB
Max. freq. deviation : 5 kHz/ 2.5 kHz ( Wide/ Narrow)
Ext. MIC
