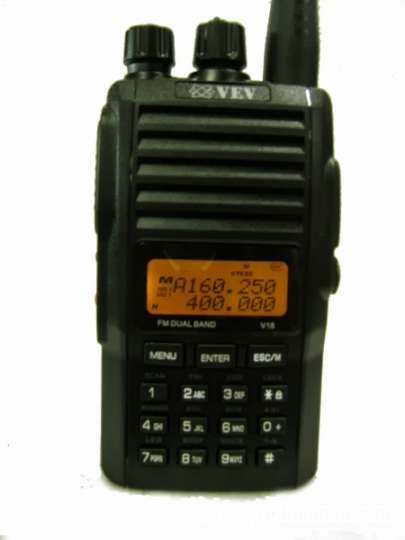

HT DUAL BAND VEV V18
- Frekwensi kerja : VHF Mhz
UHF Mhz
- Daya pancar : VHF 5 Watt
UHF 4 Watt
- Bisa menerima radio FM Mhz
- Dual display
- Baterai Li - ions 1600 mA
General Spesifications :
Frequency Range : VHF ( 134-176 Mhz ) UHF ( 400-480 Mhz )
Operating Temperature : 20C ~ 50C
Operating Voltage : DC 7.2V
Operating Mode : Frequency simplek and different frequency simplex
Size Dimension : 100mm X 55mm X 32mm ( Without Antenna )
Weight : About 220g ( Included Battery )
Antenna Impedance : 50 Ohm
Transmiter Spesifications :
Output Power : 5.5W

Frequency Stability: 2.5ppm
Max Frequency Deviation : 5Khz
Audio Distortion : 3%
Modulation Character : 3dB~ 3dB
Adjacent Channel Power: 65dB
Spurious Radiation : 7.5 Hz
Occupation Bandwitch : 16KHz
Receiver Spesifications :
Sensitivity : 0.18
Audio Distortion : < 3%
Audio Response : < 2dB~ 10dB
Channel Inhibition : < -8dB
Adjacent Channel Selectivity : 55dB
Intermodulation Rejection : 55dB
Spurious Response : 55dB
Blocking : 85dB
